1203SD-XY        Side Drive Positioning Stage        .        Family: 1200SD, R1200SD        Model: 1203SD-XY        Price: $ 864.00 Add metric micrometer heads w/standard inch threaded holes $0.00 Add Locking micrometer head $26.00 Add Posi-Lock carriage lock $131.00

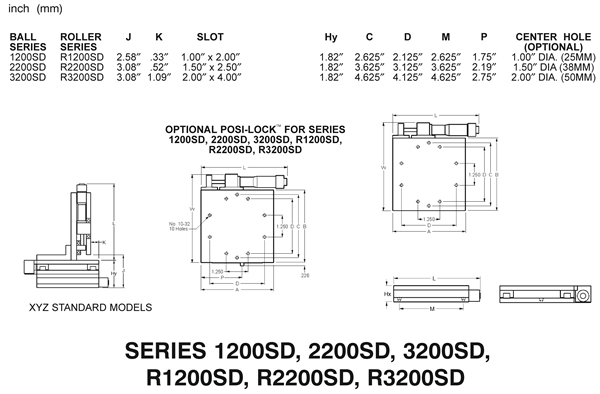

Click button to view Solid Model Drawings

All dimensions in inches unless otherwise specified Model Price Travel Load Capacity X (lbs) Load Capacity XY (lbs) Load Capacity Z (lbs) Work Surface A x B L Hx W Through Hole Accuracy (in/in of travel) 1203SD-XY $ 864.00 1.00 30 30 - 3.12 X 3.12 4.75 .91 4.04 1.00 DIA. .0005

Life Calculator

Moment Load Calculator
