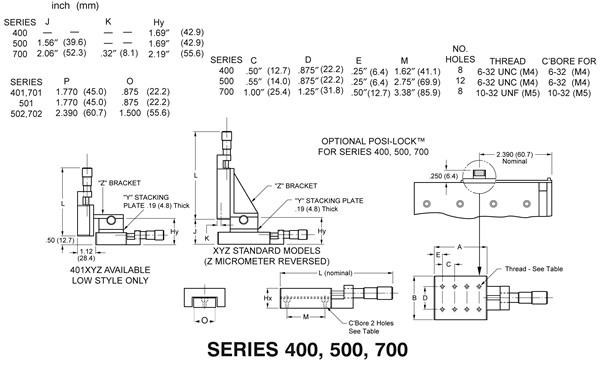

Click button to view Solid Model Drawings
| All dimensions in inches unless otherwise specified |
| Model | Price | Travel | Load
Capacity X
(lbs) | Load
Capacity XY
(lbs) | Load
Capacity Z
(lbs) | Work
Surface
A x B | L | Hx | W | Through
Hole | Accuracy
(in/in of travel) |
| 702-XYZ | $ 1,205.00 | 1.00 | 60 | 60 | 20 | 4.00 X 2.62 | 8.25 | 1.00 | - | NO | .0005 |
|
|
|
|
|
