High Precision Series Ball Slides (Flange Base)        Family: HPS2-FB        Model: HPS2-1FB        Price: $ 302.00   The standard finish is a black anodize carriage and black anodize base. Other finishes are available on request.

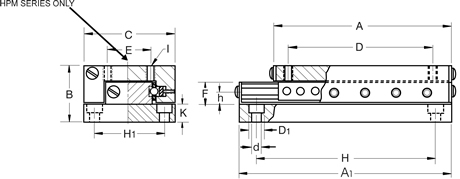

Click button to view Solid Model Drawings

All dimensions in inches unless otherwise specified Model Price $ Travel Load (lbs) Weight (lbs) Length A A1 B C D d D1 E F H1 H h I K HPS2-1FB 302.00 1 25 0.38 2.00 2.25 1.031 1.75 1.375 0.157 0.240 0.875 0.68 1.312 1.625 0.145 #6-32 0.28
