Precision Series Ball Slides - Inch        Family: S3-SS        Model: S3-6SS        Price: $ 279.00   The standard finish is a black anodize carriage and black anodize base. Other finishes are available on request.

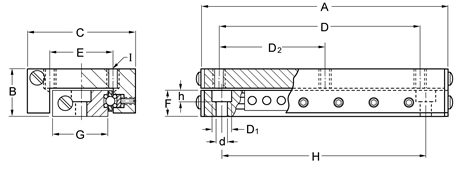

Click button to view Solid Model Drawings

All dimensions in inches unless otherwise specified Model Price $ Travel Load (lbs) Weight (lbs) Length A B C D d D1 D2 E F G H h I S3-6SS 279.00 6 154 2.25 9.00 1.00 2.62 6.000 0.204 0.328 - 1.250 0.61 1.50 7.000 0.205 #10-32
