Deltron Product Specifications

Print     Return to Search     Home

Precision Series Ball Slides - Inch        Family: M-SS        Model: M-2SS        Price: $ 145.00   The standard finish is a black anodize carriage and black anodize base. Other finishes are available on request.

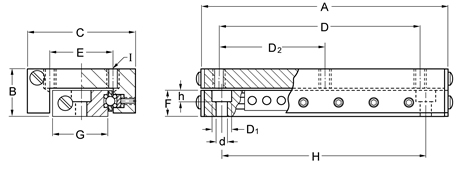

Click button to view Solid Model Drawings

All dimensions in inches unless otherwise specified Model Price $ Travel Load (lbs) Weight (lbs) Length A B C D d D1 D2 E F G H h I M-2SS 145.00 1 12 0.13 2.56 0.50 1.00 2.250 0.125 0.198 - 0.437 0.25 0.40 2.250 0.125 #6-32
