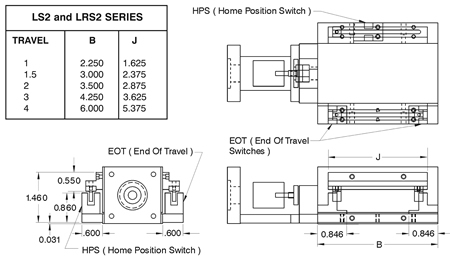

Mini Posi-Drive        Family: LRS2        Model: LRS2-1-A25-X        Price: $ 1,092.00 Options:   Lead screw pitch .250" Standard .025" .050" .062" .100" .200" .500" 1.000" Limit Switch Configuration none E=end of travel ($ 149 ) H=home position switch ($ 74 ) EH=combined ($ 225 ) Type of sensor none PNP NPN Length of Cable none 1 meter 3 meter

Maximum Recommended Revolutions Per Second
Lead: .025", .050", .062", .100"	20 RPS
Lead: .200", .250", .500", 1.0"	10 RPS

Click button to view Solid Model Drawings

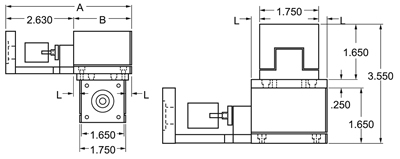

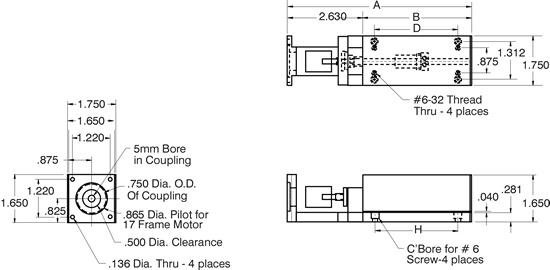

All dimensions in inches unless otherwise specified Model Price Travel Load Capacity (lbs) A B D H L S Accuracy (in/in of travel) Axis LRS2-1-A25-X $ 1,092.00 1 20 4.88 2.25 1.375 1.625 .250 1.650 0.0001 (X) Single Axis

Life Calculator

Moment Load Calculator
