| Maximum Recommended Revolutions Per Second |
| Lead: 2mm | 20 RPS |
| Lead: 3mm | 10 RPS |
| Lead: 20mm | 10 RPS |
Click button to view Solid Model Drawings

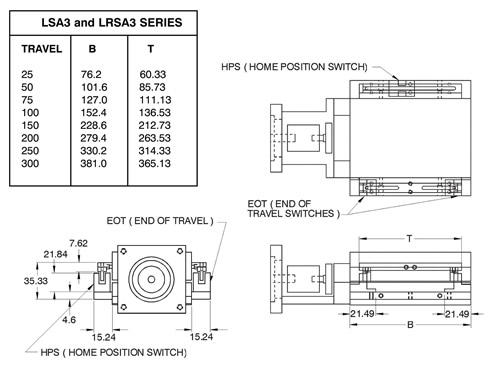

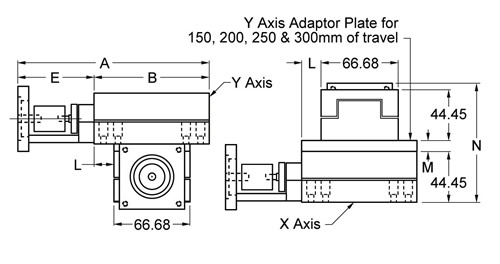

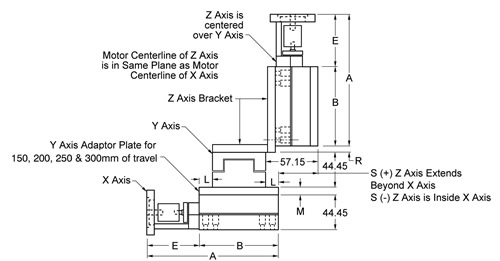

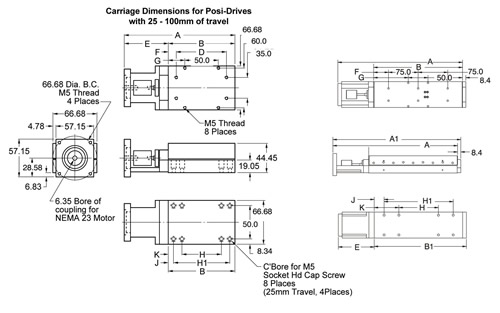

| All dimensions in millimeters unless otherwise specified |
| Model | Price | Travel | Load
Capacity (kgs) | A | B | D | P | E | F | G | H | H1 | J | K | L | M | N | R | S | Accuracy
(mm/25mm of travel) | Axis |
| LSA3-100-B02-X | $ 1,191.00 | 100 | 20 | 219 | 152 | 125 | | 67 | 13.5 | 51.0 | 60 | 135 | 8.5 | 46.0 | 43 | 0 | 95 | 19 | 14 | .003 | (X) Single Axis |
|
|
|
|
|
|
|
