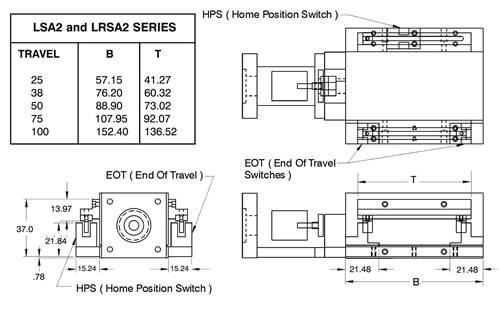

Mini Posi-Drive Stages - Metric        Family: LSA2        Model: LSA2-38-A02-XYZ        Price: $ 2,848.00 Options:   Lead screw pitch 2mm - Standard Limit Switch Configuration none E=end of travel ($ 446 ) H=home position switch ($ 223 ) EH=combined ($ 672 ) Type of sensor none PNP NPN Length of Cable none 1 meter 3 meter

Maximum Recommended Revolutions Per Second
Lead: 2mm	20 RPS

Click button to view Solid Model Drawings

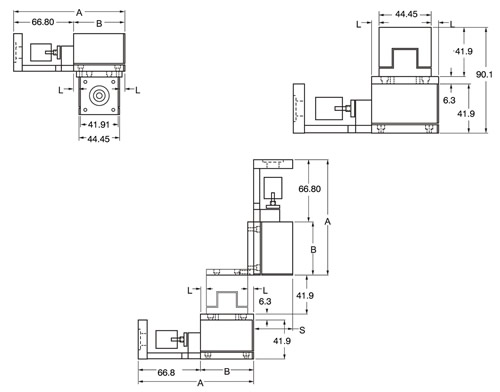

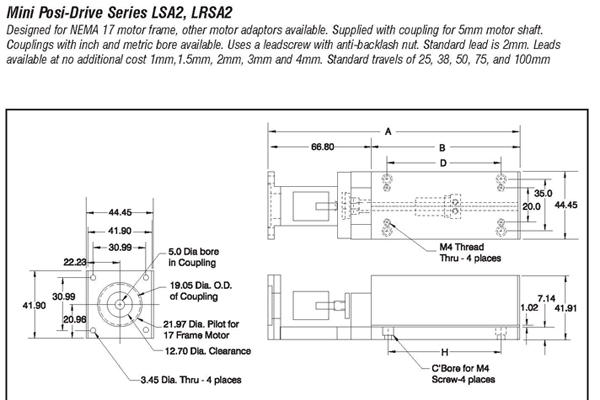

All dimensions in millimeters unless otherwise specified Model Price Travel Load Capacity (kgs) A B D H Accuracy (mm/25mm of travel) Axis LSA2-38-A02-XYZ $ 2,848.00 38 6.8 143.0 76.2 55 55 .003 (XYZ) Triple Axis

Life Calculator

Moment Load Calculator
