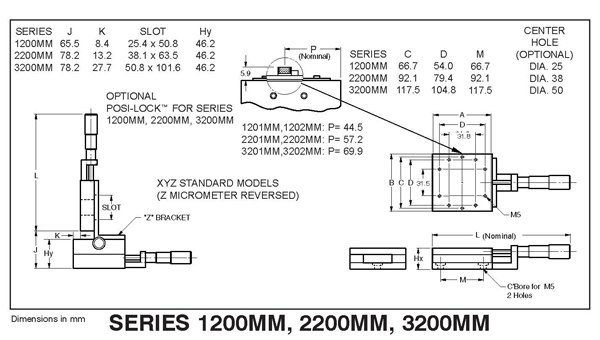

Click button to view Solid Model Drawings
| All dimensions in millimeters unless otherwise specified |
| Model | Price | Travel | Load
Capacity X
(kgs) | Load
Capacity XY
(kgs) | Load
Capacity Z
(kgs) | Work
Surface
A x B | L | Hx | W | Through
Hole | Accuracy
(mm/25mm of travel) |
| 1201MM-XY | $ 746.00 | 25 | 13.6 | 13.6 | - | 79.2 X 79.2 | 184.2 | 23.1 | - | NO | .013 |
|
|
|
|
|
