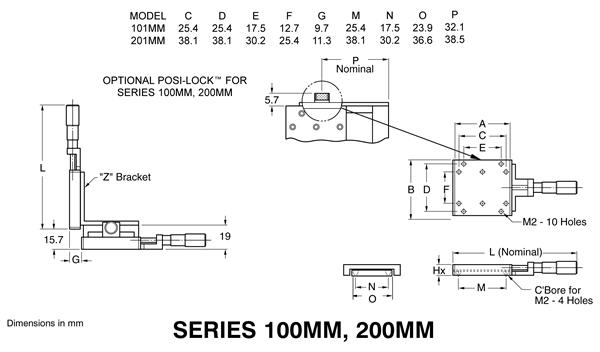

Click button to view Solid Model Drawings
| All dimensions in millimeters unless otherwise specified |
| Model | Price | Travel | Load
Capacity X
(kgs) | Load
Capacity XY
(kgs) | Load
Capacity Z
(kgs) | Work
Surface
A x B | L | Hx | W | Through
Hole | Accuracy
(mm/25mm of travel) |
| 101MM-X | $ 243.00 | 13 | 1.8 | - | - | 31.8 X 31.8 | 82.6 | 9.7 | - | NO | .013 |
|
|
|
|
|
