R751SD-X        Side Drive Positioning Stage        .        Family: 750SD, R750SD        Model: R751SD-X        Price: $ 427.00 Add metric micrometer heads w/standard inch threaded holes $0.00 Add Locking micrometer head $14.00 Add Posi-Lock carriage lock $64.00

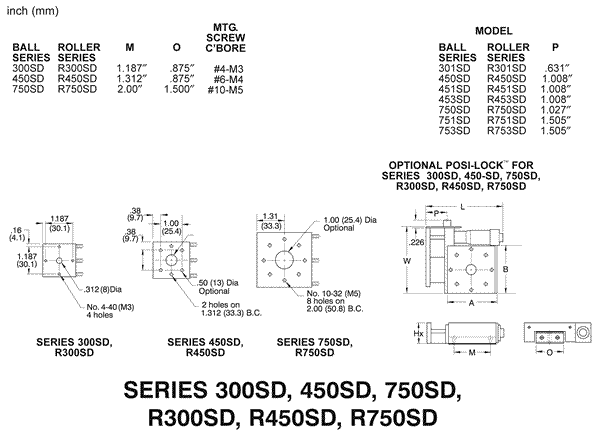

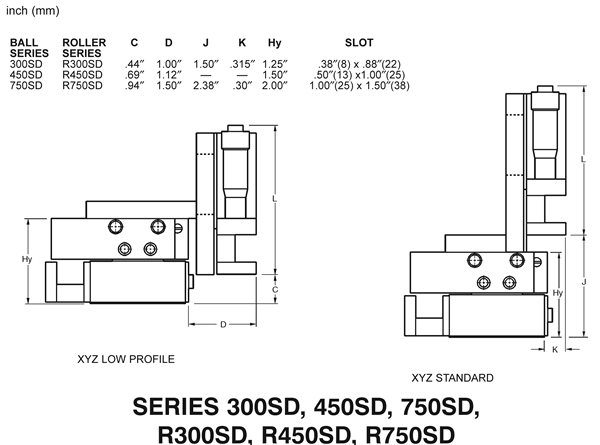

Click button to view Solid Model Drawings

All dimensions in inches unless otherwise specified Model Price Travel Load Capacity X (lbs) Load Capacity XY (lbs) Load Capacity Z (lbs) Work Surface A x B L Hx W Through Hole Accuracy (in/in of travel) R751SD-X $ 427.00 1.00 120 - - 2.62 X 2.62 4.48 1.00 3.43 NO .0001

Life Calculator

Moment Load Calculator
