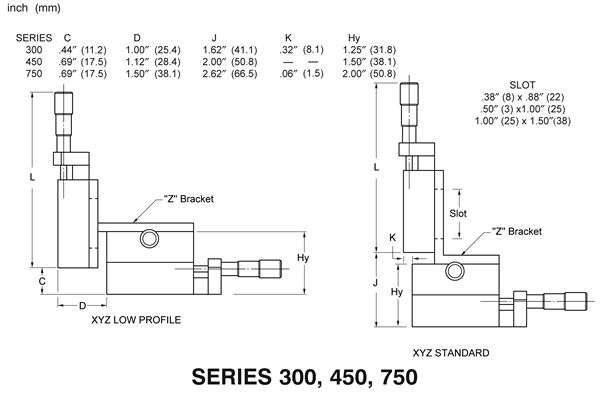

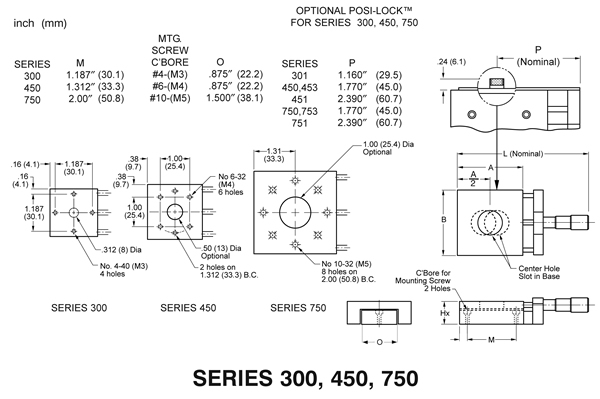

Click button to view Solid Model Drawings
| All dimensions in inches unless otherwise specified |
| Model | Price | Travel | Load Capacity X (lbs) | Load Capacity XY (lbs) | Load Capacity Z (lbs) | Work Surface A x B | L | Hx | W | Through Hole | Accuracy (in/in of travel) |
| 750-X | $ 280.00 | .50 | 60 | - | - | 2.62 X 2.62 | 5.25 | 1.00 | - | NO | .0005 |
|
|
|
|
|
