| All dimensions in millimeters unless otherwise specified |

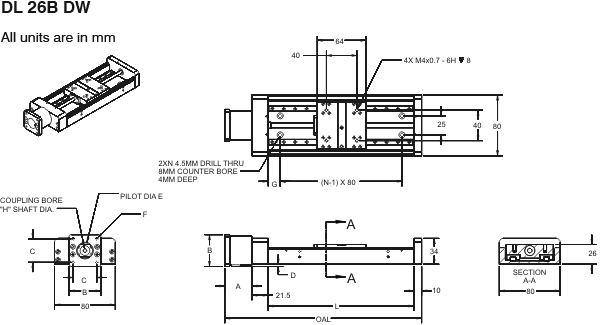

| Stepper Motor (ST) Oriental PK243 (NEMA 17) |
| Travel | OAL | L | N | G | A | B | C | D | E | F | H |
| 70 | 208.7 | 141.5 | 2 | 30.75 | 35.7 | 42 | 31 | 3 | 22 | 3.2 THRU | 5 |
|
Click button to view Solid Model Drawings
| All dimensions in millimeters unless otherwise specified |
| Model | Price | Travel | Load
Capacity
(Newtons) | Positioning
Accuracy
(µm) | Coefficient
of Friction
(µm) | Positional
Repeatability
(µm) | Running
Parallelism
(µm) | Backlash
(µm) | Linear
Speed
(mm/sec) |
| DL26B-DW-70-ST | $ 1,218.00 | 70 | 600 | 90 | 0.01 | 10 | 25 | 20 | 200 |
| Drive: Ball screw 6mm dia with 1 mm lead |
| Notes: Other leads available upon request. Lubricate with grease/oil before use. |
| Sensor: None |
|
|
|
|
|
