Inch Series Crossed Roller Slide Tables NBTA Type        Family: NBTA-4        Model: NBTA-41211        Price: $ 1,082.00

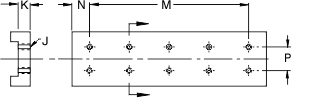

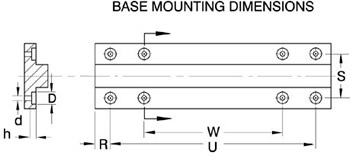

All dimensions in inches unless otherwise specified Mounting Dimensions Carriage Spacing N 1.005 Spacing P 1.875 Thread J 1/4-20 Depth K 0.327 Base Spacing R 0.496 Spacing S 3.375 C-Bore D 0.406 C-Bore d 0.281 Depth h .312 Screw Size #1/4 Profile Dimensions Height A +/- 0.005 1.440 Width B +/- 0.010 4.000 Base Thickness C .445

Click button to view Solid Model Drawings

All dimensions in inches unless otherwise specified           Base Mounting Holes Carriage Mounting Holes Model Price $ Travel Load (lbs) Length L # Base Holes U W # Carr Holes Spacing M NBTA-41211 1,082.00 11.00 1584.0 12 8 11.000 9.000 22 10X1.000

Life Calculator

Moment Load Calculator
